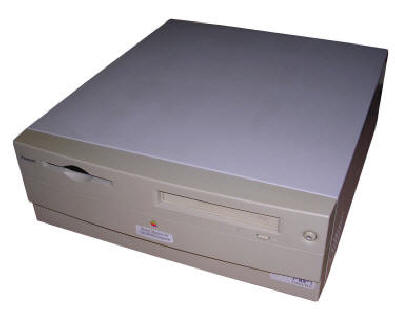

Power Macintosh 7220/200

Power Macintosh 7220 or 4400 in some countries, was another Power Mac from early 1997. It has a PowerPC 603e CPU running at 200MHz with cache expandable by special module. The typical RAM was 16 or 32MB, an IDE 1-2GB hard drive and a CD-ROM drive completed the set. There also was a version with PC compatibility board. Its mainboard was also used by some licensed clones. An interesting thing with this Mac is that Apple seemed to loosen their design standards with this model - it looks more like a PC than Mac, the case is standard, like some ATX PC, with a top cover locked by screws and typical form power supply unit. The power supply unit is AT-like with 3.3V extension, stand-by converter and "soft" power switch. Only the front panel looks as for Mac.
Probably the reason behind this design was that it was co-developed with Motorola under codename "Tanzania". Additionally it was made to be a bit cheaper than many Power Macs, as a good computer for those who want to start with Power Macintosh machines.

Model No: M3959

Year: 1997
Discontinued: 1998
CPU: PowerPC 603e 200MHz
Max. RAM: 160MB
RAM Type: 168-pin DIMM
Hard disk: 6GB SCSI, 3.5" SL
Floppy drives: 1 1.4M 3.5"
Other drives: 12x SCSI CD-ROM
Graphics: 640x480x24bit - 1280x1024x8/16bit (depends on VRAM)
Sound: Stereo 16-bit
Display: External, 14-pin connector
Dedicated OS: Mac System 7.5.3

Maximum OS: Mac System 9.1

Expansions:  - ADB.
 - 3 DIMMs for RAM Expansion
 - Cache expansion slot
 - 3 PCI slots


Peripherals in collection:
 - ADB keyboard and mouse

Connectors:  - External SCSI
 - 2 serial (RS-422) ports for printer and modem
 - 15-pin video connector
 - ADB connector for keyboard and mouse
 - Speaker output
 - Microphone input

My unit's origin is not known. It was previously heavily upgraded: A new CPU, A PCI video board with 3D accelerator, network adapter and USB have been installed, and unfortunately PC compatibility board has been lost. The mainboard survived a small battery problem but has been restored in a professional way. When I got it, there was a fresh Mac OS 8 installation with CPU drivers and a few games.

Power supply unit

Power supply unit is an ATX-like with AT's connectors. These power supplies were used around 1997 in IBM's, Intel's and Apple's computers. There are following connectors:
- Two AT-compatible connectors. Orange wire is POWER GOOD, not 3.3V.
- Two identical 3.3V connectors. They look like 6-pin AT connectors, 3 wires 3.3V, 3 wires GND in each (in 3x3.3V, 3xGND configuration). No feedback line like in modern ATX power units.
- One 3-pin connector: +5V standby (red), ground (black), ATX-compatible power on (white). There is significantly less maximum current draw on +5V Standby line in original power supply unit, it's worth knowing when experimenting with custom wake-on-LAN network adapters.
I found that it is totally OK to rework ATX power supply unit for this machine. Some IBM machines have a very similar power unit, but they have INVERTED power on signal.

Why I had to rework my power unit? After assembly I took it upstairs, powered it on and BOOM - the supply blown its fuse. I found that there was a loose screw inside, kept by thermal glue, which fell off during cleaning and caused quite fatal short-circuit which damaged power supply's driver IC.

CPU upgrade: Sonnet Crescendo G3

First of all: Manual, drivers, datasheet. There is a non-standard CPU upgrade board in this Mac - a 400MHz G3 processor has been inserted into L2 cache slot as a board with heatsink. This update was offered by Sonnet Technologies as Crescendo G3 L2 board. The problem with this board is that it seriously influences operation of the Mac in two ways:
1. It impairs CD booting. I found that with this board I cannot boot from CD for some reason.
2. It is not possible to work efficiently with this board without manufacturer's system extension.
So, there are two ways to install OS: First is just removing the board and installing OS, then installing extension (V. 3.x is totally OK). The second can be done when it's not convenient to remove CPU board: First, the drive is used in other Power Mac to install system with configuration "for every Mac". Next, the extension can be installed there theoretically, but installation may fail. In this case it is possible to launch the system without extension, but you will get several minute lags without it. Do not reset, just wait, it will patiently execute all clicks you do but every this 60+ second delay. It is possible to install an OS with it, rename System folder and during installation tell it to wipe the old system install. Having a system for this particular Mac you can install extension and reboot.


VillageTronic MP750 video board

To use Voodoo MP750 VillageTronic board, use drivers in VT's archived downloads page. Control panel will not work nevertheless, and resolutions will be weird (like 100-200Hz), so open Monitor/Displays control panel, check "All resolutions" and select proper frequencies from the list. The experimental OpenGL renderer will not work well in all games.


USB PCI Boards

USB PCI boards are quite plug-and-play with two important points:
- During OS installation, USB support should be checked, not only USB adapters support. There are two separate options, usually in non-factory USB Macs one is not selected. This is usually somewhere in customization options.
- If there is no power, it means that it uses some PCI pin which is not powered in a specific Mac. This sometimes happens. For a quick solution, use powered USB hub, for a long-term one - carefully trace, insulate and resolder connections.
