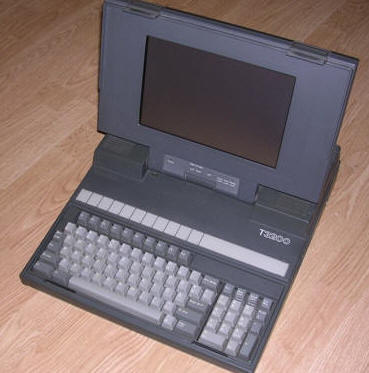

Toshiba T3200

High-performance computer of its age, Toshiba T3200 has 12MHz 286 processor, 1MB of RAM upgradeable to 4MB, built-in 40MB hard disk and 1.44MB floppy disk  drive. It has EGA-compatible (not in all cases) Plasma display capable of displaying 4 shades of amber. Toshiba 3200 can be expanded with two ISA cards (one 8-bit and one 16-bit). It has no batteries so it can't be just run without power, but it has power supply unit built-in. Unfortunately putting such computer in portable case made it very big and heavy (a little more than 8.5kg), so it's far from we know toady as "laptop" computer. In fact T3200 was not designed to be ultra portable, it was designed to be a replacement to desktop computers, then to be portable. T3200 was advertised as "The Spacesaver" as it offered the same power as desktop 286 with less space occupied.

Manufacturer Toshiba

Origin Japan
Year of unit 1988
Year of introduction 1987
Type Laptop, PC
CPU Intel 80286 12MHz
RAM 1MB expandable to 4MB
Floppy Disk 3.5", 1.44MB
Hard Disk 40MB IDE
Other media None
Graphics and display: Plasma display, up to 720x400, 4 shades.
Sound: PC Speaker
Keyboard and pointing device: 85-key full-scale keyboard with numeric keypad.


OS: MS-DOS 3.3
(Windows 1.x was an option)

Power supply:

Built-in switching power supply.

I/O:  - Serial port
 - Parallel port / External FDD
 - RGB out (DB9)
 - External keyboard (DIN)
 - One 8-bit ISA slot
 - One 16-bit ISA slot
Possible upgrades:  - RAM Expansion to 4MB with special modules.
 - External FDD
 - ISA boards
Additional peripherals:  none

My unit comes from Germany, where it was used by a valves, pumps and pipes manufacturer to program industrial devices driving valves and pumps. It has Kingston 3MB RAM expansion card which gave totally 4MB of memory, but the expansion was damaged. Instead of booting to DOS it shown parity error because something like "Was 0000 expected 0000". Quick investigation shown that Kingston used soviet chips (strange, isn't it?) for parity RAM there and one of them is probably damaged. I desoldered all 4 soviet chips and started replacing, one was damaged. If you manipulate your Toshiba remember about BIOS battery which likes to leak, better replace it with CR2032 with DIODE (don't forget, we don't want to charge CR2032, connect it like

T3200 User's Manual
T3200 characteristics
Toshiba Setup (T1850/C, T2000/SX/SXe, T2200SX, T3100/e/SX, T3200/SX/C, T3300SL, T4400SX/C, T5100, T5200/C, and T6400DX/C)

Contents: DIP switches

DIP switches

From Owner's manual:

DIP SW 1 ON Auto-switched display
OFF 100% compatible EGA  *
DIP SW 2 ON Printer port bidirectional
OFF Printer port unidirectional
DIP SW 3 ON Built-in COM as COM2
OFF Built-in COM as COM1
DIP SW 4 ON Double font in display
OFF Single font in display **
OFF Enable CRTC (normal)
DIP SW 6 ON North European font
OFF Other fonts (Normal)
DIP SW 7-10 See below

* - Not exactly, you may have display size problems with for example TAG text editor
** Some software, especially for diacritized character emulation, may alter this.

Monitor in use 7 8 9 10
Standard RGB (default 40-column mode) ON OFF OFF ON
Standard RGB (default 80-column mode) OFF OFF OFF ON
Enhanced RGB (200-line or emulation of standard RGB is default) ON ON ON OFF
Enhanced RGB (3500-line, true enhanced operation is default) OFF ON ON OFF
