Audio tapes were primary program and data storage in 8-bit microcomputers. They were cheap, easy to get and offered small, but enough amount of space. Unfortunately they were slow and quite unreliable, so commercial software was recorded few times on the same tape. Many computers, such as ZX Spectrum, Meritum or MSX used an ordinary tape recorder, like the one used in audio recording. But some computers used dedicated hardware with serial interface, for example 8-bit Atari computers or Commodore machines. Fortunately, most of these computers were quite easy to modify, so normal decks could be used.
Another group of decks were normal ones, but with special circuits making working with microcomputers easier. These included frequency filters, self-setting of optimal volume or small speakers allowing to find place on tape without waking up everyone in house. Nearly all recorders had counter, which allows to fast rewind to known program location (unfortunately their results sre usually different in different units) and a hole near read/write head to tune head skew, if it was needed.

As tapes were slow, some decks were re-made to load programs faster. In Commodore computers, Turbo-Tape modification required only a software program, but in Atari 8-bit computers it was needed to put some electronics in tape recorder and load software from cartridge. If there was no software, recorded tape became unreadable. If there was no hardware - the computer could not read program or hanged during loading every time.


Atari 1010
Atari 8-bit computers (XL/XE series)
Manufactured by: Atari

Manufactured for: Atari 800XL
Conected to: Atari SIO (serial port)
Capabilities:
 - 600bps speed
 - Styled as Atari XL/XE series computers.
 - Dual track operation (sound from one track could be played in parallel for data from second track)
 - Simpler to use than 410






Atari 1050 was a typical floppy drive used with Atari 800XL computer. It was successor of Atari 410 and was smaller (however it had external power supply) and easier to use.

An unique feature, available only in Atari players was dual track support. It means that it could put the sound from one track as data and from second track an audible sound from TV or monitor's speaker.

There were 2 models of this unit - C and S. S model is known to be more reliable.



Power Supply:

1-2  -  9V AC at 500mA
(without load power supply may get higher voltage - it's normal)

DO NOT PLUG DC! It'll DESTROY Graetz rectifier diodes!

Links:
 - http://www.atarimuseum.com/computers/8BITS/XL/xlperipherals/1010.html - in Atari Museum (spec sheet).

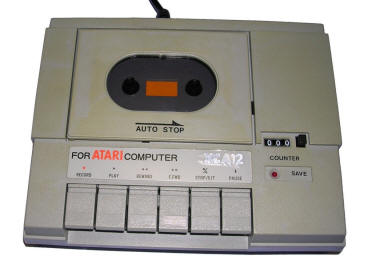

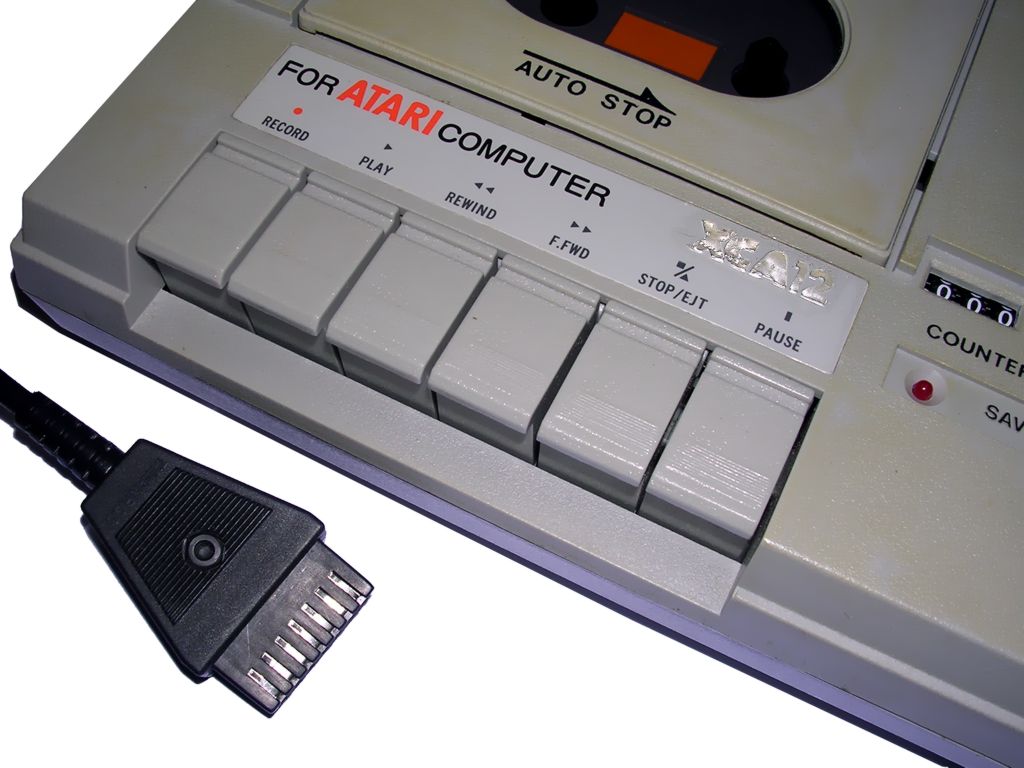

Atari CA-12
Atari 8-bit computers (XL/XE series)
Manufactured by: California Access

Manufactured for: Atari XE series (65XE/130XE)
Connected to: Atari SIO (serial port)
Capabilities:
 - Smaller than 1010
 - Styled for Atari XE line
 - Cheaper than XC12
 - Less reliable than XC-12
 - No need for external power supply

CA-12 is the same as XC-12, but is made entirely by California Access for Atari. They were cheaper and easier to get in Poland than original XC-12 ones. Unfortunately they're less reliable and their mechanism is not as precise as in XC.


(XC12)


(Polish)





One of Turbo variations used in Poland:

Box:






Atari XC-12
Atari 8-bit computers (XL/XE series)
Manufactured by: Atari

Manufactured for: Atari XE series (65XE/130XE)
Connected to: Atari SIO (serial port)
Capabilities:
 - Smaller than 1010
 - Styled for Atari XE line
 - No need for external power supply.
 - More reliable



This is an original Atari tape recorder. These were made by Atari during XE series launch, but soon Atari signed contract with California Access to make these recorders. XC-12 is known as a good and reliable recorder.

In  my unit there's Blizzard Turbo module installed.


(clone)


(original)

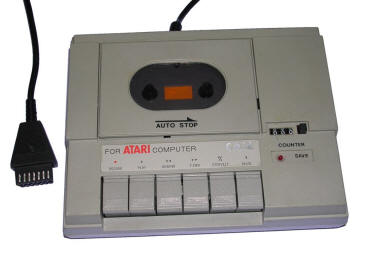

Atari XCA-12
Atari 8-bit computers (XL/XE series)
Manufactured by: California Access

Manufactured for: Atari XE series (65XE/130XE)
Connected to: Atari SIO (serial port)
Capabilities:
 - Smaller than 1010
 - Styled for Atari XE line
 - Cheaper than XC12
 - Less reliable than XC-12
 - No need for external power supply.





Quite rare tape deck from the period of production transition from Atari to California Access. It is assembled by California Access, but built from parts remained in Atari. Unfortunately many of these have counters not from Atari but from CA, making counter readings incompatible with other decks.

It had a better box, designed for marketing purposes, not only as a storage.

No photos of inside, as my unit has original warranty seals.


(XC12)

(Polish)

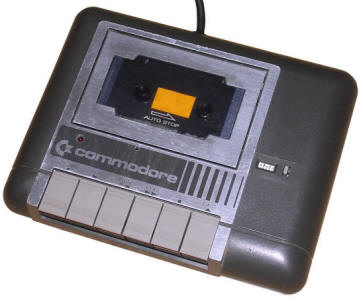

Datassette
Commodore 64
Commodore 128
Manufactured by: Commodore

Manufactured for: Commodore 64/128
Connected to: Commodore tape port
Capabilities:
 - 300 baud speed (more if turbo used)
 - Turbo tape without additional hardware
 - Styled for Commodore 64 in "breadbox" case
 - Powered from computer
 - Tape counter
 - Auto stop during Play/record.

Commodore Datassette, known as C2N or (using Commodore peripheral numbers) 1530, is a typical storage for Commodore 64 computer. It is connected with proprietary edge connector and contains simple electronics (Schmitt gate based) to convert analog sound to digital format.

First Datassette units had a mechanical bug which made it easily possible to break record key latch.








TurboCorder Data recorder
Commodore 64
Commodore 128
Manufactured by: TurboCorder

Manufactured for: Commodore 64/128
Connected to: Commodore tape port
Capabilities:
 - 300 baud speed (more if turbo used)
 - Turbo tape without additional hardware
 - Styled for Commodore 64 in "breadbox" case
 - Powered from computer
 - Tape counter
 - Auto stop during Play/record.
 - Cheaper




Another clone of Datassette, is nearly the same as original one. The only difference is in outside labels - no Commodore logo. It was easier to get and cheaper than original one.

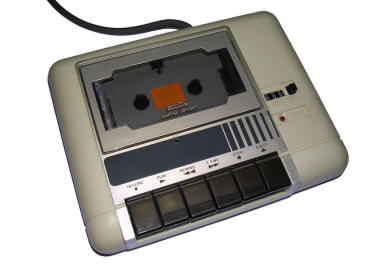

Datassette clone
Commodore 64
Commodore 128
Manufactured by: ?

Manufactured for: Commodore 64/128
Connected to: Commodore tape port
Capabilities:
  - 300 baud speed (more if turbo used)
 - Turbo tape without additional hardware
 - Styled for Commodore 64 in "breadbox" case
 - Powered from computer
 - Tape counter
 - Auto stop during Play/record.
 - Cheaper
 - Less reliable





This is strange thing - it's a copy (without Commodore logo, everything outside the case is the same), but made using the same process than original one. The only difference is precision - inside all parts are as in original Datassette, but they're made cheap and coarsely. The record latch bug is present. LED has dry solders... in both of my units. Both of my units have problems with motor when using longer tapes.
I think they were made from units which haven't passed quality check tests.










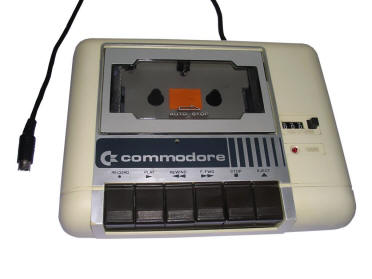

Commodore 16 series tape recorder
Commodore C16 / C16 Plus4
Manufactured by: Commodore

Manufactured for: Commodore 16 series
Connected to: Commodore tape port
Capabilities:


As normal Datassette



Thi unit is Datassette for C64 re-made by manufacturer to fit in C16. Why? In many countries there were some C16 units, but tape decks for them were rare, so Commodore decided to modify C64 datassettes collecting dust in warehouses.

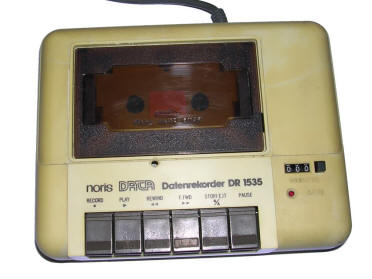

Noris Datenrekorder DR-1535
Commodore 64
Commodore 128, VC-20/VIC-20
Manufactured by: Spectravideo

Manufactured for: Commodore 64/128
Connected to: Commodore tape port
Capabilities:
 - 300 baud speed (more if turbo used)
 - Turbo tape without additional hardware
 - Styled for Commodore 64 in "breadbox" case
 - Powered from computer
 - Tape counter
 - Auto stop during Play/record.
 - Cheaper






One of many Datassette clones. Number "1535" was probably added to make buyer think it's something better than Commodore 1530.
It's an ordinary clone, cheaper and quite reliable.

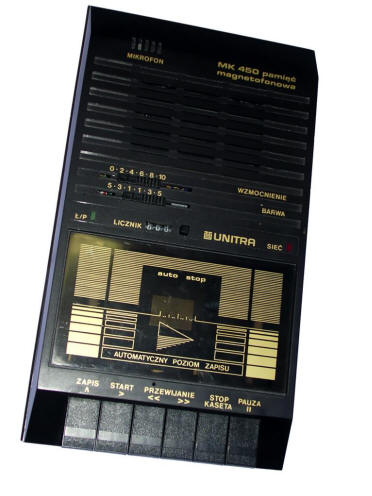

MK-450
Sound I/O (3.5mm Jack mono)
Manufactured by: ZRK Unitra Lubartów (Poland)

Manufactured for: ZX Spectrum, Elwro 800 Junior
Connected to: Audio connectors
Capabilities:
 - Audio cassette playing with tone tuning
 - Switch to turn frequency filters on.
 - External motor switch.
 - Battery operation
 - Signal monitor LED
 - Tape counter.
 - Using two 3.5mm mono Jack sockets for sound I/O and one 2.5mm mono Jack for motor control.
 - External microphone connector.
 - Made in 3 color versions: Black, yellow and white (I have only black and yellow).






Successor of normal audio recorder MK-250, MK-450 was a complete computer storage device. Designed to be used with popular ZX Spectrum, Meritum and Amstrad computers, MK-450 even had an external motor switch.

If you have this unit, don't use it much. The biggest problem of these units, both 250 and 450, was mechanism, especially 2 gears making right shaft spin. They were made from orange plastic, but I think you'll see them white. Why? This plastic oxidizes within a few years making these gears weak. Finally, longer playing makes these gears break their teeth. I haven't found any replacements of these.

There are 2 known Polish data recorders: MK-450 and MK-433 (Grundig Licensed). Sometimes MK-232P was used, as it was close to 433.








SVI-767TP
Sound I/O (3.5mm Jack mono)
Manufactured by: Spectravideo

Manufactured for: Spectravideo computers
Connected to: Audio connectors
Capabilities:
 - Small speaker for checking tape position
 - Counter
 - External 6V DC power supply
 - Motor control (2.5mm Jack mono)
 - Using two 3.5mm Jack mono for sound I/O






This small tape deck was used with Spectravideo computers, for example X'Press SVI-738. Unfortunately it had many flaws, such as lack of speed stabilization or poor mechanics.

767TP is a compact version of SVI-767, a full-sized tape recorder with internal power supply.





Power Supply:

1 - Ground
2 - +6V DC








Texas Instruments Program Recorder
Sound I/O (3.5mm Jack mono)
Manufactured by: Spectravideo

Manufactured for: ?? TI99 ??
Connected to: Audio connectors
Capabilities:
 - Built-in microphone and speaker makes it able to work as full-featured mono tape deck
 - Motor control (2.5mm Jack mono)
 - Sound I/O (two 3.5mm Jack mono)
 - Battery, external power supply (6V DC) or 110V power.
 - Tape counter
 - Carrying handle










I have no idea for what computer it was made. I think it may be for TI99 home computers popular in USA, as its power supply is for 110V.  It's an ordinary cassette deck, equipped with built-in microphone and speaker to work as a normal recorder.



Power Supply:

1 - +6V DC
2 - Ground

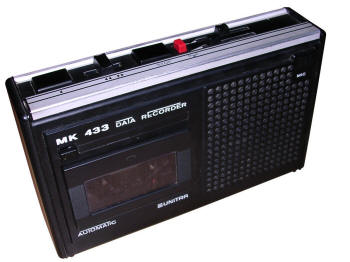

Unitra MK-433
Sound I/O (DIN 7 pin)
Manufactured by: Unitra Lubartów(Poland)

Manufactured for: ZX Spectrum, Elwro Junior, Meritum
Connected to: Audio connectors
Capabilities:
 - Built-in microphone and speaker makes it able to work as full-featured mono tape deck, additional filters may be turned off using internal switch
 - Motor control (DIN pin 6?).
 - Sound I/O.
 - Battery, internal power supply.
 - Carrying handle.




This tape recorder was modified MK-232P, which gained popularity as tape recorder for microcomputers. MK-433 had some filters to improve signal quality. The biggest problem with it was its price, 2 times bigger than normal model, lack of counter and later problems with mechanical parts (well known oxidizxing plastic gears). It was used with ZX-Spectrum, to which it was designed, as well as with Elwro 800 Junior or Meritum.
